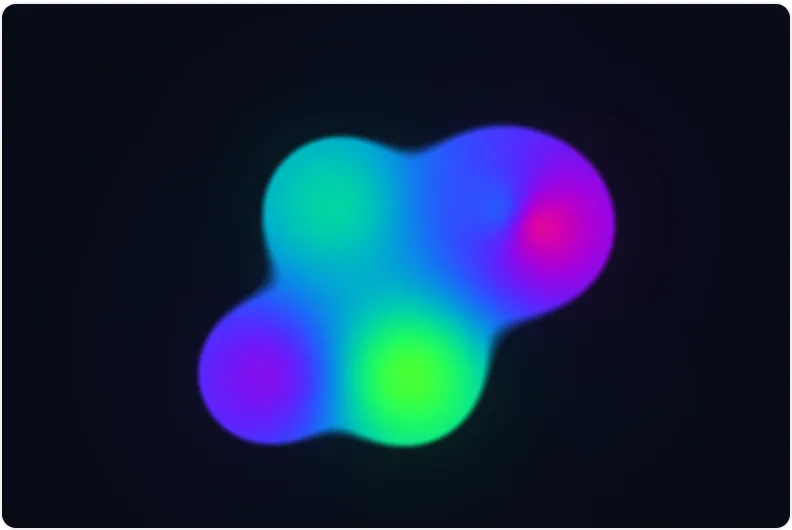

Metaballs

// ═══ typeshade example — metaballs (implicit blob field) ═══
//
// The classic 2D metaballs: each ball contributes an inverse-square field
// w = k/d², the fields SUM, and the iso-contour of the summed field is the
// blobby silhouette that merges and splits as the balls orbit. Colour is the
// field-weighted blob index through a cosine palette, so blobs keep their hue
// while blending where they touch. Showcases a Loop accumulator over a
// uniform-driven ball count. WGSL (WebGPU) + GLSL ES 3.00 (WebGL2).

import {
  fn,
  module,
  u32,
  f32,
  toF32,
  vec2,
  vec3,
  vec4,
  sin,
  cos,
  dot,
  max,
  mix,
  smoothstep,
  Loop,
  Var,
  Let,
  f32T,
  vec4fT,
} from '../src/index.js';
import { VsOut, vs, fullscreenUniforms, screenCoords } from './_fullscreen.js';
import type { ShaderExample } from './_shared.js';
const U = fullscreenUniforms({ count: f32T, mouse: vec4fT });

const palette = fn('palette', { t: f32T }, ({ t }) => {
  const ph = vec3(0.0, 0.33, 0.67);
  return vec3(0.5).add(cos(t.add(ph).mul(6.283)).mul(0.5));
});

const fs = fn(
  'fs',
  { vo: VsOut },
  ({ vo }) => {
    const t = U.field.time;
    const res = U.field.resolution;
    const p = screenCoords(vo.uv, res);
    // once the pointer has entered (m.w = 1), ball 0 leaves its orbit and
    // follows the cursor — mapped to the same isotropic space as p
    const m = U.field.mouse;
    const cursor = Let(screenCoords(vec2(m.x.div(res.x), m.y.div(res.y)), res));
    // sum the inverse-square fields; hue accumulates field-weighted so merged
    // blobs blend their colours in proportion to who dominates the pixel
    const field = Var(f32(0));
    const hue = Var(f32(0));
    Loop(
      u32(0),
      (i) => toF32(i).lt(U.field.count),
      (i) => {
        const fi = toF32(i);
        const orbit = vec2(
          sin(t.mul(fi.mul(0.13).add(0.5)).add(fi.mul(2.4))).mul(0.55),
          cos(t.mul(fi.mul(0.11).add(0.4)).add(fi.mul(1.7))).mul(0.42),
        );
        // ball 0 → cursor when interacted: step(fi, 0.5) selects i == 0
        const follow = f32(1)
          .sub(smoothstep(0.4, 0.6, fi))
          .mul(m.w);
        const ctr = mix(orbit, cursor, follow);
        const d = Let(p.sub(ctr));
        const w = Let(f32(0.055).div(dot(d, d).add(0.003)));
        field.assign(field.add(w));
        hue.assign(hue.add(w.mul(fi)));
      },
    );
    // iso-contour of the summed field = the blob silhouette
    const iso = smoothstep(0.95, 1.15, field);
    const blob = palette({ t: hue.div(max(field, 0.0001)).mul(0.15).add(t.mul(0.03)) });
    // outside: dark bg lit by a faint field glow; inside: the full blob colour
    const bg = vec3(0.03, 0.04, 0.08).add(blob.mul(field.mul(0.08)));
    return vec4(mix(bg, blob, iso), 1);
  },
  { stage: 'fragment', retAttr: '@location(0)' },
);

const metaballsModule = module({
  structs: [U.struct, VsOut.decl],
  bindings: [U.binding],
  funcs: [vs, fs],
});

export const metaballs: ShaderExample = {
  id: 'metaballs',
  title: 'Metaballs',
  blurb:
    'Implicit blobs — each ball adds an inverse-square field, the fields sum, and the iso-contour merges and splits as they orbit. Move the pointer and one ball follows it into the swarm. Ball count is live.',
  category: 'generic',
  file: 'metaballs.ts',
  module: metaballsModule,
  renderable: true,
  controls: {
    time: { kind: 'time' },
    resolution: { kind: 'resolution' },
    count: { kind: 'slider', label: 'Balls', min: 2, max: 6, step: 1, value: 5 },
    mouse: { kind: 'mouse' },
  },
};

struct Uniforms {
  time: f32,
  resolution: vec2<f32>,
  count: f32,
  mouse: vec4<f32>,
}

struct VsOut {
  @builtin(position) pos: vec4<f32>,
  @location(0) uv: vec2<f32>,
}

@group(0) @binding(0) var<uniform> U: Uniforms;

fn palette(t: f32) -> vec3<f32> {
  return (vec3<f32>(0.5) + (cos(((t + vec3<f32>(0.0, 0.33, 0.67)) * 6.283)) * 0.5));
}

@vertex
fn vs(@builtin(vertex_index) vi: u32) -> VsOut {
  let _cse0 = ((f32((vi & 1u)) * 4.0) - 1.0);
  let _cse1 = ((f32((vi >> 1u)) * 4.0) - 1.0);
  return VsOut(vec4<f32>(_cse0, _cse1, 0.0, 1.0), vec2<f32>(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5)));
}

@fragment
fn fs(vo: VsOut) -> @location(0) vec4<f32> {
  let _licm0 = U.count;
  let _licm1 = ((vo.uv.x * 2.0) - 1.0);
  let _licm2 = ((vo.uv.y * 2.0) - 1.0);
  let _licm3 = U.time;
  let _licm4 = U.mouse.w;
  let _cse0 = vec2<f32>((U.mouse.x / U.resolution.x), (U.mouse.y / U.resolution.y));
  let _cse1 = (U.resolution.x / U.resolution.y);
  let _v0 = vec2<f32>((((_cse0.x * 2.0) - 1.0) * _cse1), ((_cse0.y * 2.0) - 1.0));
  var _v1: f32 = 0.0;
  var _v2: f32 = 0.0;
  for (var _v3: u32 = 0u; (f32(_v3) < _licm0); _v3 = (_v3 + 1u)) {
    let _gv0 = f32(_v3);
    let _v4 = (vec2<f32>((_licm1 * _cse1), _licm2) - mix(vec2<f32>((sin(((_licm3 * ((_gv0 * 0.13) + 0.5)) + (_gv0 * 2.4))) * 0.55), (cos(((_licm3 * ((_gv0 * 0.11) + 0.4)) + (_gv0 * 1.7))) * 0.42)), _v0, ((1.0 - smoothstep(0.4, 0.6, _gv0)) * _licm4)));
    let _v5 = (0.055 / (dot(_v4, _v4) + 0.003));
    _v1 = (_v1 + _v5);
    _v2 = (_v2 + (_v5 * _gv0));
  }
  let _cse2 = (_licm3 * 0.03);
  let _lc1 = palette((((_v2 / max(_v1, 0.0001)) * 0.15) + _cse2));
  return vec4<f32>(mix((vec3<f32>(0.03, 0.04, 0.08) + (_lc1 * (_v1 * 0.08))), _lc1, smoothstep(0.95, 1.15, _v1)), 1.0);
}

#version 300 es
precision highp float;
precision highp int;

out vec2 uv;

void main() {
  uint vi = uint(gl_VertexID);
  float _cse0 = ((float((vi & 1u)) * 4.0) - 1.0);
  float _cse1 = ((float((vi >> 1u)) * 4.0) - 1.0);
  gl_Position = vec4(_cse0, _cse1, 0.0, 1.0);
  uv = vec2(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5));
}

#version 300 es
precision highp float;
precision highp int;

layout(std140) uniform Uniforms {
  float time;
  vec2 resolution;
  float count;
  vec4 mouse;
} U;
vec3 palette(float t) {
  return (vec3(0.5) + (cos(((t + vec3(0.0, 0.33, 0.67)) * 6.283)) * 0.5));
}
in vec2 uv;
layout(location = 0) out vec4 _ret;

void main() {
  float _licm0 = U.count;
  float _licm1 = ((uv.x * 2.0) - 1.0);
  float _licm2 = ((uv.y * 2.0) - 1.0);
  float _licm3 = U.time;
  float _licm4 = U.mouse.w;
  vec2 _cse0 = vec2((U.mouse.x / U.resolution.x), (U.mouse.y / U.resolution.y));
  float _cse1 = (U.resolution.x / U.resolution.y);
  vec2 _v0 = vec2((((_cse0.x * 2.0) - 1.0) * _cse1), ((_cse0.y * 2.0) - 1.0));
  float _v1 = 0.0;
  float _v2 = 0.0;
  for (uint _v3 = 0u; (float(_v3) < _licm0); _v3 = (_v3 + 1u)) {
    float _gv0 = float(_v3);
    vec2 _v4 = (vec2((_licm1 * _cse1), _licm2) - mix(vec2((sin(((_licm3 * ((_gv0 * 0.13) + 0.5)) + (_gv0 * 2.4))) * 0.55), (cos(((_licm3 * ((_gv0 * 0.11) + 0.4)) + (_gv0 * 1.7))) * 0.42)), _v0, ((1.0 - smoothstep(0.4, 0.6, _gv0)) * _licm4)));
    float _v5 = (0.055 / (dot(_v4, _v4) + 0.003));
    _v1 = (_v1 + _v5);
    _v2 = (_v2 + (_v5 * _gv0));
  }
  float _cse2 = (_licm3 * 0.03);
  vec3 _lc1 = palette((((_v2 / max(_v1, 0.0001)) * 0.15) + _cse2));
  _ret = vec4(mix((vec3(0.03, 0.04, 0.08) + (_lc1 * (_v1 * 0.08))), _lc1, smoothstep(0.95, 1.15, _v1)), 1.0);
}
