GPU types: from TypeScript syntax to GPU values

TypeShade uses TypeScript syntax but does not inherit every JavaScript runtime value type as a shader value. This page focuses on the values that are actually represented and computed on the GPU.

1. TypeScript types and GPU types

Instead of treating a broad runtime type such as number as a shader value, TypeShade uses explicit GPU representations such as f32, i32 and u32. vec* and mat* are GPU arithmetic values, not JavaScript objects.

// TypeScript surface, GPU-specific value types
let value: f32 = 1
let index: u32 = 0
let direction: vec3 = vec3(0, 1, 0)

2. Scalars

Single numeric values are represented as GPU scalar types and can be used in resource and struct field declarations.

3. Vectors

vec2, vec3 and vec4 group scalar values into a GPU value. They are common in shader calculations and stage inputs.

const uv: vec2 = vec2(0.5, 0.5)
const color: vec4 = vec4(1, 0, 0, 1)

4. Matrices

Types such as mat4 represent GPU arithmetic values used for transforms. They are not JavaScript objects.

type Camera = {
  view: mat4
}

5. Arrays

array represents a sequence of GPU values. Combined with a resource element type, it describes the shape of host-provided buffer data.

declare const pixels: storage<array<f32>, "read_write">

6. Live example

The entry below names a GPU type on every line: vec2 for the position, f32 for the distance and the radius, vec3 for the colour.

disc.shade.ts
"use typeshade"


class Uniforms {
  resolution: vec2
  center: vec2
  radius: f32
  tint: vec3
}


declare const u: uniform<Uniforms>


@fragment
export function main(@location(0) uv: vec2): vec4 {
  const ratio: f32 = u.resolution.x / u.resolution.y
  const p: vec2 = (uv - u.center) * vec2(ratio, 1.)
  const d: f32 = length(p) - u.radius
  const edge: f32 = 1. - smoothstep(0., 0.008, d)
  return vec4(mix(vec3(0.15, 0.14, 0.91), u.tint, edge), 1.)
}
Open in the Playground

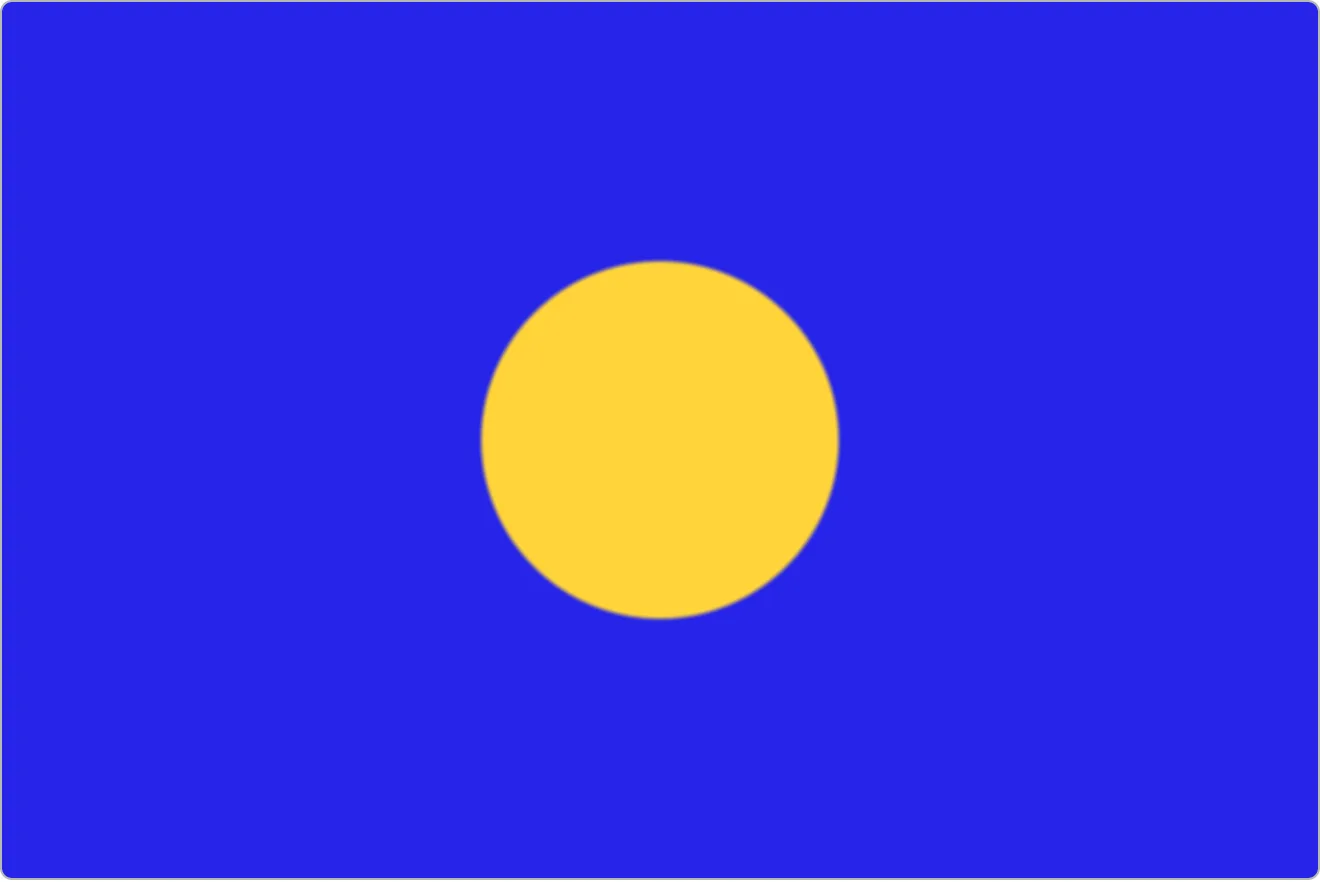

Disc shader, written in TypeScript and compiled by TypeShade, rendered at build time.
A disc placed by a vec2, sized by an f32 and coloured by a vec3.

d is the distance from the pixel to the rim of the disc: negative inside it, 0 on the rim, positive outside. edge turns that one f32 into a mask, and mix reads the mask to pick a colour.

Filled by the page every frame, with no control: resolution.

Try the following, with the controls or by editing a line:

  • Change vec2(ratio, 1.) to vec2(1., 1.) on the p line. The disc stretches into an ellipse: ratio was scaling the x component alone, which is what a vec2 lets you do.
  • Replace the return line with return vec4(vec3(fract(d * 10.)), 1.). The rings that appear are d itself, and vec3 spreads that one f32 across the three colour channels.
  • Swap length(p) for max(abs(p.x), abs(p.y)) and the disc becomes a square, or for abs(p.x) + abs(p.y) and it becomes a diamond. Then write the f32 for a shape of your own.
Emitted output

The whole module the compiler saw. The page added the vertex entry and the VsOut struct it returns; the rest is the file above.

WGSL
struct VsOut {
  @builtin(position) pos: vec4<f32>,
  @location(0) uv: vec2<f32>,
}


struct Uniforms {
  resolution: vec2<f32>,
  center: vec2<f32>,
  radius: f32,
  tint: vec3<f32>,
}


@group(0) @binding(0) var<uniform> u: Uniforms;


@vertex
fn fullscreen(@builtin(vertex_index) i: u32) -> VsOut {
  let x = select(-1.0, 3.0, (i == 1u));
  let y = select(-1.0, 3.0, (i == 2u));
  return VsOut(vec4<f32>(x, y, 0.0, 1.0), vec2<f32>(((x * 0.5) + 0.5), ((y * 0.5) + 0.5)));
}


@fragment
fn main(@location(0) uv: vec2<f32>) -> @location(0) vec4<f32> {
  let ratio = (u.resolution.x / u.resolution.y);
  let p = ((uv - u.center) * vec2<f32>(ratio, 1.0));
  let d = (length(p) - u.radius);
  let edge = (1.0 - smoothstep(0.0, 0.008, d));
  return vec4<f32>(mix(vec3<f32>(0.15, 0.14, 0.91), u.tint, edge), 1.0);
}
GLSL ES 3.00 vertex
#version 300 es
precision highp float;
precision highp int;


out vec2 uv;


void main() {
  uint i = uint(gl_VertexID);
  float x = ((i == 1u) ? 3.0 : -1.0);
  float y = ((i == 2u) ? 3.0 : -1.0);
  gl_Position = vec4(x, y, 0.0, 1.0);
  uv = vec2(((x * 0.5) + 0.5), ((y * 0.5) + 0.5));
}
GLSL ES 3.00 fragment
#version 300 es
precision highp float;
precision highp int;


layout(std140) uniform Uniforms {
  vec2 resolution;
  vec2 center;
  float radius;
  vec3 tint;
} u;
in vec2 uv;
layout(location = 0) out vec4 _ret;


void main() {
  float ratio = (u.resolution.x / u.resolution.y);
  vec2 p = ((uv - u.center) * vec2(ratio, 1.0));
  float d = (length(p) - u.radius);
  float edge = (1.0 - smoothstep(0.0, 0.008, d));
  _ret = vec4(mix(vec3(0.15, 0.14, 0.91), u.tint, edge), 1.0);
}
Uniform block
FieldTypeOffset
resolutionvec2<f32>0
centervec2<f32>8
radiusf3216
tintvec3<f32>32
