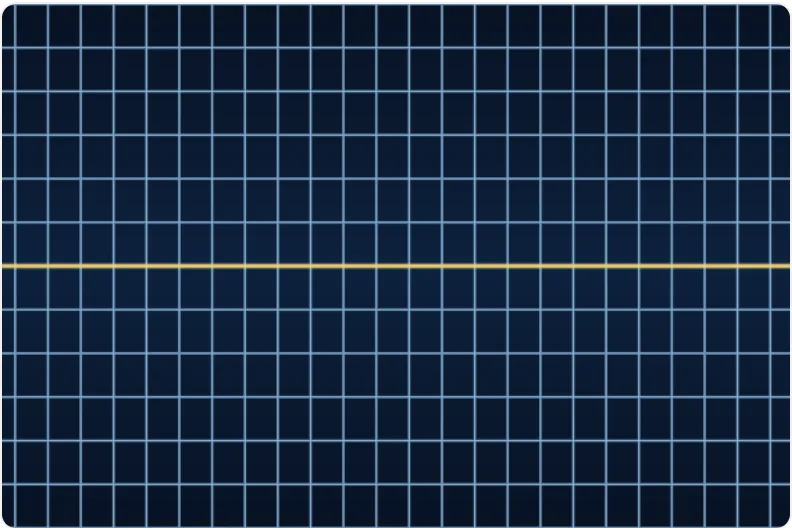

Graticule

// ═══ typeshade example — graticule (lon/lat grid) ═══
//
// A cartographic shader: the lon/lat graticule every map draws. The fragment maps screen
// UV → longitude/latitude, draws anti-aliased grid lines at a uniform `spacing` (degrees)
// with screen-constant width via `fwidth`, emphasises the equator in gold, and slowly
// pans longitude over `time` so the globe appears to spin. Same DSL → WGSL + WebGL2 GLSL.

import {
  fn,
  module,
  vec3,
  vec4,
  abs,
  fract,
  smoothstep,
  max,
  mix,
  clamp,
  fwidth,
  f32,
  f32T,
} from '../src/index.js';
import { VsOut, vs, fullscreenUniforms } from './_fullscreen.js';
import type { ShaderExample } from './_shared.js';
const U = fullscreenUniforms({ spacing: f32T });

const fs = fn(
  'fs',
  { vo: VsOut },
  ({ vo }) => {
    const uv = vo.uv;
    const sp = U.field.spacing;
    // UV → lon/lat, with a slow longitudinal pan over time.
    const lon = uv.x.mul(360).sub(180).add(U.field.time.mul(8));
    const lat = uv.y.mul(180).sub(90);

    // Distance (in degrees) to the nearest gridline, for lon and lat.
    const dLon = abs(fract(lon.div(sp).add(0.5)).sub(0.5)).mul(sp);
    const dLat = abs(fract(lat.div(sp).add(0.5)).sub(0.5)).mul(sp);
    // Screen-constant line width: fwidth gives degrees-per-pixel here.
    const gLon = f32(1).sub(smoothstep(0, fwidth(lon).mul(1.5), dLon));
    const gLat = f32(1).sub(smoothstep(0, fwidth(lat).mul(1.5), dLat));
    const grid = max(gLon, gLat);
    // Equator emphasis (fixed — uses the un-panned latitude).
    const eq = f32(1).sub(smoothstep(0, fwidth(lat).mul(3), abs(lat)));

    // Ocean background: deeper toward the poles.
    const ocean = mix(vec3(0.05, 0.13, 0.24), vec3(0.03, 0.07, 0.14), abs(lat).div(90));
    const lineCol = vec3(0.55, 0.72, 0.86);
    const withGrid = mix(ocean, lineCol, clamp(grid, 0, 1));
    const withEq = mix(withGrid, vec3(0.96, 0.84, 0.45), clamp(eq, 0, 1));
    return vec4(withEq, 1);
  },
  { stage: 'fragment', retAttr: '@location(0)' },
);

const graticuleModule = module({
  structs: [U.struct, VsOut.decl],
  bindings: [U.binding],
  funcs: [vs, fs],
});

export const graticule: ShaderExample = {
  id: 'graticule',
  title: 'Graticule',
  blurb:
    'The lon/lat grid every map draws — anti-aliased with screen-constant width via fwidth, gold equator, slowly spinning over time. Adjust the spacing in degrees.',
  category: 'cartographic',
  file: 'graticule.ts',
  module: graticuleModule,
  renderable: true,
  controls: {
    time: { kind: 'time' },
    resolution: { kind: 'resolution' },
    spacing: { kind: 'slider', label: 'Spacing (°)', min: 5, max: 45, step: 1, value: 15 },
  },
};

struct Uniforms {
  time: f32,
  resolution: vec2<f32>,
  spacing: f32,
}

struct VsOut {
  @builtin(position) pos: vec4<f32>,
  @location(0) uv: vec2<f32>,
}

@group(0) @binding(0) var<uniform> U: Uniforms;

@vertex
fn vs(@builtin(vertex_index) vi: u32) -> VsOut {
  let _cse0 = ((f32((vi & 1u)) * 4.0) - 1.0);
  let _cse1 = ((f32((vi >> 1u)) * 4.0) - 1.0);
  return VsOut(vec4<f32>(_cse0, _cse1, 0.0, 1.0), vec2<f32>(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5)));
}

@fragment
fn fs(vo: VsOut) -> @location(0) vec4<f32> {
  let _cse3 = ((vo.uv.y * 180.0) - 90.0);
  let _cse0 = abs(_cse3);
  let _cse1 = (((vo.uv.x * 360.0) - 180.0) + (U.time * 8.0));
  let _cse2 = fwidth(_cse3);
  return vec4<f32>(mix(mix(mix(vec3<f32>(0.05, 0.13, 0.24), vec3<f32>(0.03, 0.07, 0.14), (_cse0 / 90.0)), vec3<f32>(0.55, 0.72, 0.86), clamp(max((1.0 - smoothstep(0.0, (fwidth(_cse1) * 1.5), (abs((fract(((_cse1 / U.spacing) + 0.5)) - 0.5)) * U.spacing))), (1.0 - smoothstep(0.0, (_cse2 * 1.5), (abs((fract(((_cse3 / U.spacing) + 0.5)) - 0.5)) * U.spacing)))), 0.0, 1.0)), vec3<f32>(0.96, 0.84, 0.45), clamp((1.0 - smoothstep(0.0, (_cse2 * 3.0), _cse0)), 0.0, 1.0)), 1.0);
}

#version 300 es
precision highp float;
precision highp int;

out vec2 uv;

void main() {
  uint vi = uint(gl_VertexID);
  float _cse0 = ((float((vi & 1u)) * 4.0) - 1.0);
  float _cse1 = ((float((vi >> 1u)) * 4.0) - 1.0);
  gl_Position = vec4(_cse0, _cse1, 0.0, 1.0);
  uv = vec2(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5));
}

#version 300 es
precision highp float;
precision highp int;

layout(std140) uniform Uniforms {
  float time;
  vec2 resolution;
  float spacing;
} U;
in vec2 uv;
layout(location = 0) out vec4 _ret;

void main() {
  float _cse3 = ((uv.y * 180.0) - 90.0);
  float _cse0 = abs(_cse3);
  float _cse1 = (((uv.x * 360.0) - 180.0) + (U.time * 8.0));
  float _cse2 = fwidth(_cse3);
  _ret = vec4(mix(mix(mix(vec3(0.05, 0.13, 0.24), vec3(0.03, 0.07, 0.14), (_cse0 / 90.0)), vec3(0.55, 0.72, 0.86), clamp(max((1.0 - smoothstep(0.0, (fwidth(_cse1) * 1.5), (abs((fract(((_cse1 / U.spacing) + 0.5)) - 0.5)) * U.spacing))), (1.0 - smoothstep(0.0, (_cse2 * 1.5), (abs((fract(((_cse3 / U.spacing) + 0.5)) - 0.5)) * U.spacing)))), 0.0, 1.0)), vec3(0.96, 0.84, 0.45), clamp((1.0 - smoothstep(0.0, (_cse2 * 3.0), _cse0)), 0.0, 1.0)), 1.0);
}
