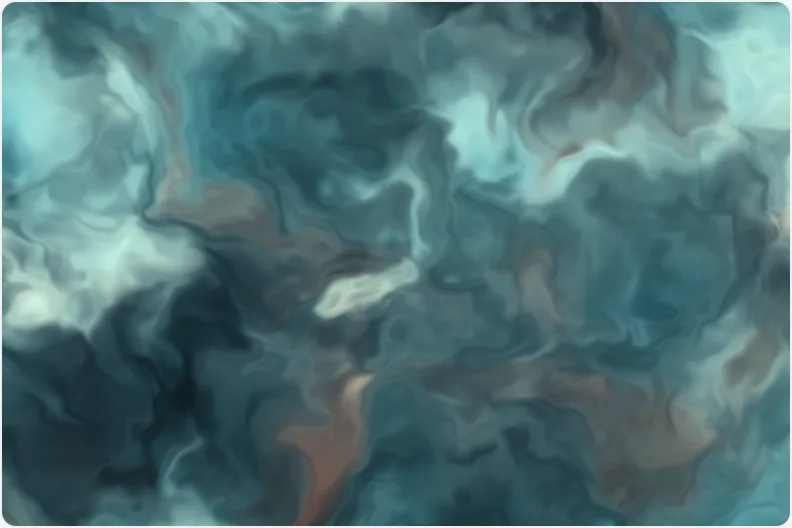

Domain warping

// ═══ typeshade example — domain warping (fbm of fbm of fbm) ═══
//
// Inigo Quilez's domain-warping construction: instead of colouring by
// fbm(p) directly, feed noise its own output — f(p) = fbm(p + w·fbm(p + fbm(p)))
// — and the lattice melts into marbled, organic flow. The intermediate warp
// vectors q and r double as colour axes. The fbm helper here is a 4-octave
// UNROLLED expression (each octave doubles frequency, halves amplitude), so
// it stays a pure value function. WGSL (WebGPU) + GLSL ES 3.00 (WebGL2).

import {
  fn,
  module,
  vec2,
  vec3,
  vec4,
  floor,
  fract,
  mix,
  length,
  clamp,
  smoothstep,
  Let,
  f32T,
  vec2fT,
  u32,
  i32,
  f32,
  u32T,
} from '../src/index.js';
import { VsOut, vs, fullscreenUniforms, screenCoords } from './_fullscreen.js';
import type { ShaderExample } from './_shared.js';
const U = fullscreenUniforms({ warp: f32T });

// An exact integer hash (lowbias32 with xxHash's primes): every target and the CPU oracle
// agree on every bit of it. `fract(sin(x) * 43758.5453)` did not, since WGSL bounds `sin`
// only to 2^-11 and the multiply puts that error above the fraction (#184).
const hash32 = fn('hash32', { x: u32T }, ({ x }) => {
  const a = Let(x.bitXor(x.shr(16)).mul(0x85ebca77));
  const b = Let(a.bitXor(a.shr(13)).mul(0xc2b2ae3d));
  return b.bitXor(b.shr(16));
});

// scalar hash of a lattice point → [0,1): 24 bits, which f32 holds exactly
const hash = fn('hash', { p: vec2fT }, ({ p }) => {
  const h = Let(hash32({ x: u32(i32(p.x)).bitXor(hash32({ x: u32(i32(p.y)) })) }));
  return f32(h.shr(8)).mul(5.9604644775390625e-8); // 2^-24, exact: WGSL lets `/` round
});

// bilinear value noise with smootherstep weights
const noise = fn('noise', { p: vec2fT }, ({ p }) => {
  const i = Let(floor(p));
  const f = Let(fract(p));
  const u = f.mul(f).mul(vec2(3).sub(f.mul(2)));
  return mix(
    mix(hash({ p: i }), hash({ p: i.add(vec2(1, 0)) }), u.x),
    mix(hash({ p: i.add(vec2(0, 1)) }), hash({ p: i.add(vec2(1, 1)) }), u.x),
    u.y,
  );
});

// 4-octave fbm, unrolled so the helper stays a pure value expression
const fbm = fn('fbm', { p: vec2fT }, ({ p }) => {
  return noise({ p })
    .mul(0.5)
    .add(noise({ p: p.mul(2.02) }).mul(0.25))
    .add(noise({ p: p.mul(4.08) }).mul(0.125))
    .add(noise({ p: p.mul(8.2) }).mul(0.0625));
});

const fs = fn(
  'fs',
  { vo: VsOut },
  ({ vo }) => {
    const t = U.field.time;
    const res = U.field.resolution;
    const p = screenCoords(vo.uv, res).mul(1.8);
    const w = U.field.warp;
    // first warp: q = (fbm(p), fbm(p + k₁))
    const q = Let(vec2(fbm({ p }), fbm({ p: p.add(vec2(5.2, 1.3)) })));
    // second warp: r = (fbm(p + w·q + k₂ + drift), fbm(p + w·q + k₃))
    const pq = p.add(q.mul(w));
    const r = Let(
      vec2(
        fbm({ p: pq.add(vec2(1.7, 9.2)).add(vec2(t.mul(0.15), t.mul(0.12))) }),
        fbm({ p: pq.add(vec2(8.3, 2.8)) }),
      ),
    );
    // final field
    const f = Let(fbm({ p: p.add(r.mul(w)) }));
    // colour: base by f², tinted by the warp magnitudes (iq's construction)
    const a = mix(vec3(0.09, 0.12, 0.2), vec3(0.85, 0.83, 0.72), clamp(f.mul(f).mul(2.8), 0, 1));
    const b = mix(a, vec3(0.2, 0.5, 0.55), clamp(length(q).mul(0.9), 0, 1));
    const c = mix(b, vec3(0.66, 0.3, 0.2), clamp(smoothstep(0.4, 1, r.y).mul(0.6), 0, 1));
    return vec4(c.mul(f.mul(1.4).add(0.35)), 1);
  },
  { stage: 'fragment', retAttr: '@location(0)' },
);

const domainWarpModule = module({
  structs: [U.struct, VsOut.decl],
  bindings: [U.binding],
  funcs: [vs, fs],
});

export const domainWarp: ShaderExample = {
  id: 'domain-warp',
  title: 'Domain warping',
  blurb:
    'fbm fed its own output — f(p) = fbm(p + w·fbm(p + fbm(p))) — melts lattice noise into marbled organic flow; the intermediate warp vectors double as colour axes. Warp strength is live.',
  category: 'generic',
  file: 'domain-warp.ts',
  module: domainWarpModule,
  renderable: true,
  controls: {
    time: { kind: 'time' },
    resolution: { kind: 'resolution' },
    warp: { kind: 'slider', label: 'Warp', min: 0, max: 4, step: 0.1, value: 2.4 },
  },
};

struct Uniforms {
  time: f32,
  resolution: vec2<f32>,
  warp: f32,
}

struct VsOut {
  @builtin(position) pos: vec4<f32>,
  @location(0) uv: vec2<f32>,
}

@group(0) @binding(0) var<uniform> U: Uniforms;

fn hash32(x: u32) -> u32 {
  let _v0 = ((x ^ (x >> 16u)) * 2246822519u);
  let _v1 = ((_v0 ^ (_v0 >> 13u)) * 3266489917u);
  return (_v1 ^ (_v1 >> 16u));
}

fn hash(p: vec2<f32>) -> f32 {
  let _v0 = hash32((u32(i32(p.x)) ^ hash32(u32(i32(p.y)))));
  return (f32((_v0 >> 8u)) * 5.960464477539063e-8);
}

fn noise(p: vec2<f32>) -> f32 {
  let _v0 = floor(p);
  let _v1 = fract(p);
  let _cse0 = vec2<f32>(3.0);
  let _gv0 = ((_v1 * _v1) * (_cse0 - (_v1 * 2.0)));
  let _lc0 = _gv0.x;
  return mix(mix(hash(_v0), hash((_v0 + vec2<f32>(1.0, 0.0))), _lc0), mix(hash((_v0 + vec2<f32>(0.0, 1.0))), hash((_v0 + vec2<f32>(1.0, 1.0))), _lc0), _gv0.y);
}

fn fbm(p: vec2<f32>) -> f32 {
  return ((((noise(p) * 0.5) + (noise((p * 2.02)) * 0.25)) + (noise((p * 4.08)) * 0.125)) + (noise((p * 8.2)) * 0.0625));
}

@vertex
fn vs(@builtin(vertex_index) vi: u32) -> VsOut {
  let _cse0 = ((f32((vi & 1u)) * 4.0) - 1.0);
  let _cse1 = ((f32((vi >> 1u)) * 4.0) - 1.0);
  return VsOut(vec4<f32>(_cse0, _cse1, 0.0, 1.0), vec2<f32>(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5)));
}

@fragment
fn fs(vo: VsOut) -> @location(0) vec4<f32> {
  let _cse0 = (vec2<f32>((((vo.uv.x * 2.0) - 1.0) * (U.resolution.x / U.resolution.y)), ((vo.uv.y * 2.0) - 1.0)) * 1.8);
  let _v0 = vec2<f32>(fbm(_cse0), fbm((_cse0 + vec2<f32>(5.2, 1.3))));
  let _lc0 = (_cse0 + (_v0 * U.warp));
  let _v1 = vec2<f32>(fbm(((_lc0 + vec2<f32>(1.7, 9.2)) + vec2<f32>((U.time * 0.15), (U.time * 0.12)))), fbm((_lc0 + vec2<f32>(8.3, 2.8))));
  let _v2 = fbm((_cse0 + (_v1 * U.warp)));
  return vec4<f32>((mix(mix(mix(vec3<f32>(0.09, 0.12, 0.2), vec3<f32>(0.85, 0.83, 0.72), clamp(((_v2 * _v2) * 2.8), 0.0, 1.0)), vec3<f32>(0.2, 0.5, 0.55), clamp((length(_v0) * 0.9), 0.0, 1.0)), vec3<f32>(0.66, 0.3, 0.2), clamp((smoothstep(0.4, 1.0, _v1.y) * 0.6), 0.0, 1.0)) * ((_v2 * 1.4) + 0.35)), 1.0);
}

#version 300 es
precision highp float;
precision highp int;

out vec2 uv;

void main() {
  uint vi = uint(gl_VertexID);
  float _cse0 = ((float((vi & 1u)) * 4.0) - 1.0);
  float _cse1 = ((float((vi >> 1u)) * 4.0) - 1.0);
  gl_Position = vec4(_cse0, _cse1, 0.0, 1.0);
  uv = vec2(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5));
}

#version 300 es
precision highp float;
precision highp int;

layout(std140) uniform Uniforms {
  float time;
  vec2 resolution;
  float warp;
} U;
int _f2i(float x) {
  return int(mix(clamp(x, -2147483648.0, 2147483520.0), 0.0, isnan(x)));
}
uint hash32(uint x) {
  uint _v0 = ((x ^ (x >> 16u)) * 2246822519u);
  uint _v1 = ((_v0 ^ (_v0 >> 13u)) * 3266489917u);
  return (_v1 ^ (_v1 >> 16u));
}

float hash(vec2 p) {
  uint _v0 = hash32((uint(_f2i(p.x)) ^ hash32(uint(_f2i(p.y)))));
  return (float((_v0 >> 8u)) * 5.960464477539063e-8);
}

float noise(vec2 p) {
  vec2 _v0 = floor(p);
  vec2 _v1 = fract(p);
  vec2 _cse0 = vec2(3.0);
  vec2 _gv0 = ((_v1 * _v1) * (_cse0 - (_v1 * 2.0)));
  float _lc0 = _gv0.x;
  return mix(mix(hash(_v0), hash((_v0 + vec2(1.0, 0.0))), _lc0), mix(hash((_v0 + vec2(0.0, 1.0))), hash((_v0 + vec2(1.0, 1.0))), _lc0), _gv0.y);
}

float fbm(vec2 p) {
  return ((((noise(p) * 0.5) + (noise((p * 2.02)) * 0.25)) + (noise((p * 4.08)) * 0.125)) + (noise((p * 8.2)) * 0.0625));
}
in vec2 uv;
layout(location = 0) out vec4 _ret;

void main() {
  vec2 _cse0 = (vec2((((uv.x * 2.0) - 1.0) * (U.resolution.x / U.resolution.y)), ((uv.y * 2.0) - 1.0)) * 1.8);
  vec2 _v0 = vec2(fbm(_cse0), fbm((_cse0 + vec2(5.2, 1.3))));
  vec2 _lc0 = (_cse0 + (_v0 * U.warp));
  vec2 _v1 = vec2(fbm(((_lc0 + vec2(1.7, 9.2)) + vec2((U.time * 0.15), (U.time * 0.12)))), fbm((_lc0 + vec2(8.3, 2.8))));
  float _v2 = fbm((_cse0 + (_v1 * U.warp)));
  _ret = vec4((mix(mix(mix(vec3(0.09, 0.12, 0.2), vec3(0.85, 0.83, 0.72), clamp(((_v2 * _v2) * 2.8), 0.0, 1.0)), vec3(0.2, 0.5, 0.55), clamp((length(_v0) * 0.9), 0.0, 1.0)), vec3(0.66, 0.3, 0.2), clamp((smoothstep(0.4, 1.0, _v1.y) * 0.6), 0.0, 1.0)) * ((_v2 * 1.4) + 0.35)), 1.0);
}
