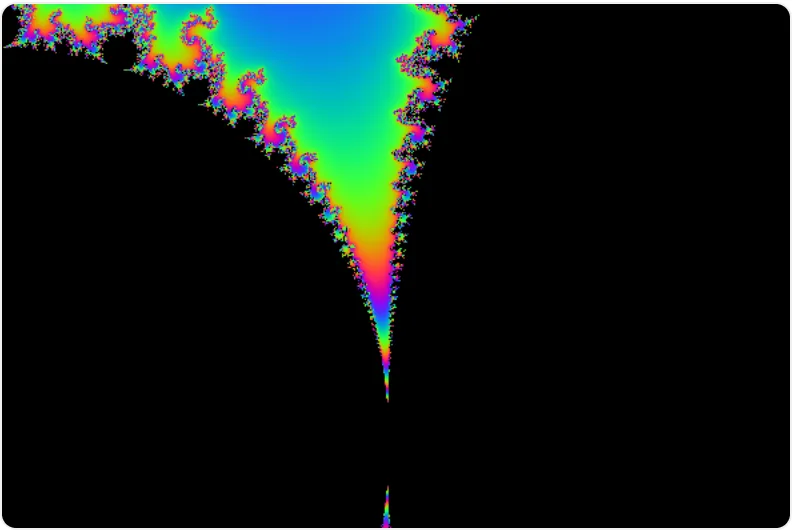

Mandelbrot set

// ═══ typeshade example — Mandelbrot set (smooth escape-time) ═══
//
// The fractal every shader site ports first: iterate z ← z² + c where c is the
// pixel, colour by the SMOOTH iteration count (the fractional remainder from
// log₂ log₂ |z|² kills the discrete banding), and breathe the zoom into the
// seahorse valley. Sibling to julia.ts (fixed plane, orbiting c) — here c is
// the plane and the camera moves. f32 precision bounds the useful zoom depth,
// which is exactly the limit the fp64 emulation (`fp64Lower`, and the
// relative-to-centre trick the fp64-* examples use) exists to beat.
// WGSL (WebGPU) + GLSL ES 3.00 (WebGL2).

import {
  fn,
  module,
  u32,
  f32,
  vec2,
  vec3,
  vec4,
  sin,
  cos,
  dot,
  exp,
  log2,
  max,
  step,
  Loop,
  If,
  Break,
  Var,
  Let,
  f32T,
  vec4fT,
} from '../src/index.js';
import { VsOut, vs, fullscreenUniforms, screenCoords } from './_fullscreen.js';
import type { ShaderExample } from './_shared.js';
const U = fullscreenUniforms({ zoom: f32T, mouse: vec4fT });

// Iridescent cosine palette: 0.5 + 0.5·cos(2π(t + phase)).
const palette = fn('palette', { t: f32T }, ({ t }) => {
  const ph = vec3(0.0, 0.33, 0.67);
  return vec3(0.5).add(cos(t.add(ph).mul(6.283)).mul(0.5));
});

const fs = fn(
  'fs',
  { vo: VsOut },
  ({ vo }) => {
    const res = U.field.resolution;
    const p = screenCoords(vo.uv, res);
    // breathing zoom into the seahorse valley (−0.7453 + 0.1127i)
    const s = Let(
      exp(U.field.zoom.add(sin(U.field.time.mul(0.2)).mul(0.75).add(0.75)).neg()).mul(2.4),
    );
    // pointer pans the view: the pointer maps into the same isotropic space as
    // p and offsets the centre, scaled by the current zoom. mu.w = 0 (never
    // touched) keeps the canonical seahorse-valley framing.
    const mu = U.field.mouse;
    const pan = Let(
      screenCoords(vec2(mu.x.div(res.x), mu.y.div(res.y)), res)
        .mul(s)
        .mul(mu.w),
    );
    const c = vec2(p.x.mul(s).sub(0.7453).add(pan.x), p.y.mul(s).add(0.1127).add(pan.y));
    const z = Var(vec2(0, 0));
    const it = Var(f32(0));
    Loop(
      u32(0),
      (i) => i.lt(u32(120)),
      () => {
        If(dot(z, z).gt(16), () => {
          Break();
        }); // escaped
        z.assign(vec2(z.x.mul(z.x).sub(z.y.mul(z.y)).add(c.x), z.x.mul(z.y).mul(2).add(c.y)));
        it.assign(it.add(1));
      },
    );
    // smooth iteration count — subtract the fractional escape overshoot
    const m = Let(dot(z, z));
    const sn = it.sub(log2(max(log2(max(m, 1.0001)), 0.0001))).add(1);
    // interior (never escaped) stays black
    const inside = step(119.5, it);
    const col = palette({ t: sn.mul(0.035).add(U.field.time.mul(0.02)) }).mul(f32(1).sub(inside));
    return vec4(col, 1);
  },
  { stage: 'fragment', retAttr: '@location(0)' },
);

const mandelbrotModule = module({
  structs: [U.struct, VsOut.decl],
  bindings: [U.binding],
  funcs: [vs, fs],
});

export const mandelbrot: ShaderExample = {
  id: 'mandelbrot',
  title: 'Mandelbrot set',
  blurb:
    'The Mandelbrot set with smooth escape-time colouring — log₂ log₂ |z|² removes the iteration banding — breathing in and out of the seahorse valley. Move the pointer to pan the view; the zoom slider sets how deep the breath goes (f32 bounds the floor).',
  category: 'generic',
  file: 'mandelbrot.ts',
  module: mandelbrotModule,
  renderable: true,
  controls: {
    time: { kind: 'time' },
    resolution: { kind: 'resolution' },
    zoom: { kind: 'slider', label: 'Zoom', min: 0, max: 4, step: 0.1, value: 1.5 },
    mouse: { kind: 'mouse' },
  },
};

struct Uniforms {
  time: f32,
  resolution: vec2<f32>,
  zoom: f32,
  mouse: vec4<f32>,
}

struct VsOut {
  @builtin(position) pos: vec4<f32>,
  @location(0) uv: vec2<f32>,
}

@group(0) @binding(0) var<uniform> U: Uniforms;

fn palette(t: f32) -> vec3<f32> {
  return (vec3<f32>(0.5) + (cos(((t + vec3<f32>(0.0, 0.33, 0.67)) * 6.283)) * 0.5));
}

@vertex
fn vs(@builtin(vertex_index) vi: u32) -> VsOut {
  let _cse0 = ((f32((vi & 1u)) * 4.0) - 1.0);
  let _cse1 = ((f32((vi >> 1u)) * 4.0) - 1.0);
  return VsOut(vec4<f32>(_cse0, _cse1, 0.0, 1.0), vec2<f32>(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5)));
}

@fragment
fn fs(vo: VsOut) -> @location(0) vec4<f32> {
  let _v0 = (exp((-(U.zoom + ((sin((U.time * 0.2)) * 0.75) + 0.75)))) * 2.4);
  let _cse0 = vec2<f32>((U.mouse.x / U.resolution.x), (U.mouse.y / U.resolution.y));
  let _cse4 = (U.resolution.x / U.resolution.y);
  let _v1 = ((vec2<f32>((((_cse0.x * 2.0) - 1.0) * _cse4), ((_cse0.y * 2.0) - 1.0)) * _v0) * U.mouse.w);
  var _v2: vec2<f32> = vec2<f32>(0.0, 0.0);
  var _v3: f32 = 0.0;
  let _cse3 = vec2<f32>((((vo.uv.x * 2.0) - 1.0) * _cse4), ((vo.uv.y * 2.0) - 1.0));
  let _cse1 = _cse3.x;
  let _cse2 = _cse3.y;
  for (var _v4: u32 = 0u; (_v4 < 120u); _v4 = (_v4 + 1u)) {
    if ((dot(_v2, _v2) > 16.0)) {
      break;
    }
    let _lc0 = vec2<f32>((((_cse1 * _v0) - 0.7453) + _v1.x), (((_cse2 * _v0) + 0.1127) + _v1.y));
    _v2 = vec2<f32>((((_v2.x * _v2.x) - (_v2.y * _v2.y)) + _lc0.x), (((_v2.x * _v2.y) * 2.0) + _lc0.y));
    _v3 = (_v3 + 1.0);
  }
  let _v5 = dot(_v2, _v2);
  return vec4<f32>((palette(((((_v3 - log2(max(log2(max(_v5, 1.0001)), 0.0001))) + 1.0) * 0.035) + (U.time * 0.02))) * (1.0 - step(119.5, _v3))), 1.0);
}

#version 300 es
precision highp float;
precision highp int;

out vec2 uv;

void main() {
  uint vi = uint(gl_VertexID);
  float _cse0 = ((float((vi & 1u)) * 4.0) - 1.0);
  float _cse1 = ((float((vi >> 1u)) * 4.0) - 1.0);
  gl_Position = vec4(_cse0, _cse1, 0.0, 1.0);
  uv = vec2(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5));
}

#version 300 es
precision highp float;
precision highp int;

layout(std140) uniform Uniforms {
  float time;
  vec2 resolution;
  float zoom;
  vec4 mouse;
} U;
vec3 palette(float t) {
  return (vec3(0.5) + (cos(((t + vec3(0.0, 0.33, 0.67)) * 6.283)) * 0.5));
}
in vec2 uv;
layout(location = 0) out vec4 _ret;

void main() {
  float _v0 = (exp((-(U.zoom + ((sin((U.time * 0.2)) * 0.75) + 0.75)))) * 2.4);
  vec2 _cse0 = vec2((U.mouse.x / U.resolution.x), (U.mouse.y / U.resolution.y));
  float _cse4 = (U.resolution.x / U.resolution.y);
  vec2 _v1 = ((vec2((((_cse0.x * 2.0) - 1.0) * _cse4), ((_cse0.y * 2.0) - 1.0)) * _v0) * U.mouse.w);
  vec2 _v2 = vec2(0.0, 0.0);
  float _v3 = 0.0;
  vec2 _cse3 = vec2((((uv.x * 2.0) - 1.0) * _cse4), ((uv.y * 2.0) - 1.0));
  float _cse1 = _cse3.x;
  float _cse2 = _cse3.y;
  for (uint _v4 = 0u; (_v4 < 120u); _v4 = (_v4 + 1u)) {
    if ((dot(_v2, _v2) > 16.0)) {
      break;
    }
    vec2 _lc0 = vec2((((_cse1 * _v0) - 0.7453) + _v1.x), (((_cse2 * _v0) + 0.1127) + _v1.y));
    _v2 = vec2((((_v2.x * _v2.x) - (_v2.y * _v2.y)) + _lc0.x), (((_v2.x * _v2.y) * 2.0) + _lc0.y));
    _v3 = (_v3 + 1.0);
  }
  float _v5 = dot(_v2, _v2);
  _ret = vec4((palette(((((_v3 - log2(max(log2(max(_v5, 1.0001)), 0.0001))) + 1.0) * 0.035) + (U.time * 0.02))) * (1.0 - step(119.5, _v3))), 1.0);
}
