Discard cutout

// ═══ typeshade example — discard cutout (#1840 GLSL-legalize coverage) ═══
//
// A fragment helper discards outside a centred circle and returns the fill colour;
// the fragment stage calls it ONCE, as the sole argument of the fragment IO-struct's
// `.construct({...})` — the exact shape ANGLE's D3D11 backend miscompiles when the
// discarding call is left inline in a GLSL struct constructor (glsl-legalize.ts,
// #1840). This example's GLSL golden pins the `_dh0` local the legalize pass
// hoists it into; the WGSL golden stays the untouched inline call (WGSL has no
// such backend bug, so it is byte-untouched by design).

import {
  fn,
  module,
  ioStruct,
  vec3,
  vec4,
  location,
  vec2fT,
  vec4fT,
  If,
  Discard,
  Let,
  length,
  mix,
} from '../src/index.js';
import { VsOut, vs, fullscreenUniforms, screenCoords } from './_fullscreen.js';
import type { ShaderExample } from './_shared.js';

const U = fullscreenUniforms();

const FsOut = ioStruct('FsOut', { color: location(0, vec4fT) });

// Discards outside the unit circle; inside, a radial gradient from a bright
// centre to a dim rim.
const discardOutsideCircle = fn('discard_outside_circle', { p: vec2fT }, ({ p }) => {
  const r = Let(length(p));
  If(r.gt(1), () => {
    Discard();
  });
  return vec4(mix(vec3(1, 1, 1), vec3(0.06, 0.1, 0.35), r), 1);
});

const fs = fn(
  'fs',
  { vo: VsOut },
  ({ vo }) => {
    const p = screenCoords(vo.uv, U.field.resolution);
    return FsOut.construct({ color: discardOutsideCircle({ p }) });
  },
  { stage: 'fragment' },
);

const discardCutoutModule = module({
  structs: [U.struct, VsOut.decl, FsOut.decl],
  bindings: [U.binding],
  funcs: [vs, fs],
});

export const discardCutout: ShaderExample = {
  id: 'discard-cutout',
  title: 'Discard cutout',
  blurb:

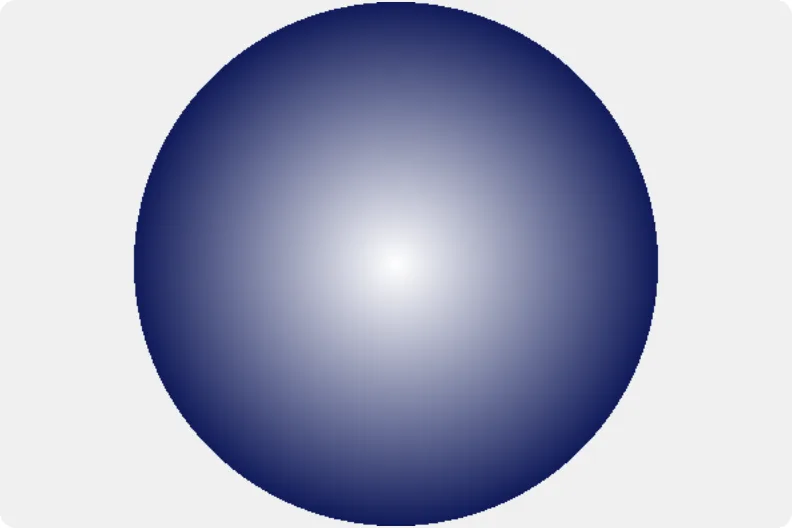

    "A fragment helper discards outside a centred circle and returns the fill colour, called once as the fragment IO-struct's constructor argument — the exact shape ANGLE's D3D11 backend miscompiles when left inline (#1840). Renders a clean circular cutout with a radial centre-to-rim gradient.",
  category: 'generic',
  file: 'discard-cutout.ts',
  module: discardCutoutModule,
  renderable: true,
  controls: {
    time: { kind: 'time' },
    resolution: { kind: 'resolution' },
  },
};

struct Uniforms {
  time: f32,
  resolution: vec2<f32>,
}

struct VsOut {
  @builtin(position) pos: vec4<f32>,
  @location(0) uv: vec2<f32>,
}

struct FsOut {
  @location(0) color: vec4<f32>,
}

@group(0) @binding(0) var<uniform> U: Uniforms;

fn discard_outside_circle(p: vec2<f32>) -> vec4<f32> {
  let _v0 = length(p);
  if ((_v0 > 1.0)) {
    discard;
  }
  return vec4<f32>(mix(vec3<f32>(1.0, 1.0, 1.0), vec3<f32>(0.06, 0.1, 0.35), _v0), 1.0);
}

@vertex
fn vs(@builtin(vertex_index) vi: u32) -> VsOut {
  let _cse0 = ((f32((vi & 1u)) * 4.0) - 1.0);
  let _cse1 = ((f32((vi >> 1u)) * 4.0) - 1.0);
  return VsOut(vec4<f32>(_cse0, _cse1, 0.0, 1.0), vec2<f32>(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5)));
}

@fragment
fn fs(vo: VsOut) -> FsOut {
  return FsOut(discard_outside_circle(vec2<f32>((((vo.uv.x * 2.0) - 1.0) * (U.resolution.x / U.resolution.y)), ((vo.uv.y * 2.0) - 1.0))));
}

#version 300 es
precision highp float;
precision highp int;

out vec2 uv;

void main() {
  uint vi = uint(gl_VertexID);
  float _cse0 = ((float((vi & 1u)) * 4.0) - 1.0);
  float _cse1 = ((float((vi >> 1u)) * 4.0) - 1.0);
  gl_Position = vec4(_cse0, _cse1, 0.0, 1.0);
  uv = vec2(((_cse0 * 0.5) + 0.5), ((_cse1 * 0.5) + 0.5));
}

#version 300 es
precision highp float;
precision highp int;

layout(std140) uniform Uniforms {
  float time;
  vec2 resolution;
} U;
vec4 discard_outside_circle(vec2 p) {
  float _v0 = length(p);
  if ((_v0 > 1.0)) {
    discard;
  }
  return vec4(mix(vec3(1.0, 1.0, 1.0), vec3(0.06, 0.1, 0.35), _v0), 1.0);
}
in vec2 uv;
layout(location = 0) out vec4 color;

void main() {
  vec4 _dh0 = discard_outside_circle(vec2((((uv.x * 2.0) - 1.0) * (U.resolution.x / U.resolution.y)), ((uv.y * 2.0) - 1.0)));
  color = _dh0;
}
